Working With a Content Management Framework: MODx

on Jan 7th 2009 with 126 comments

If you are interested in Content Management Systems (CMS) then most likely you have heard about MODx (modxcms.com). MODx is not just an extremely flexible CMS that makes managing website content a breeze, it is also a powerful Content Management Framework with an extensive API that makes it a developer’s dream.

“MODx is an open source PHP Application Framework with Powerful Features that help you take control of your online content. It empowers developers and advanced users to give as much control as desired to whomever they desire for day-to-day website content maintenance chores.”




In this tutorial we will explore a number of the standard MODx features to illustrate what it is like to work with MODx by going through the process of taking a static HTML prototype and turning it into a working MODx driven website. We will be covering a lot of territory in order to paint a big picture of what you can do with MODx but will only be skimming the surface of what is possible.

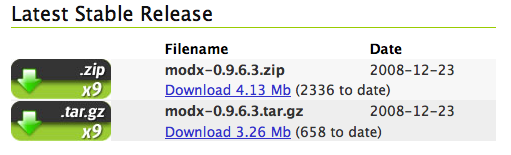

Our project will be based on a standard MODx install. You can download the latest MODx release from the MODx website.

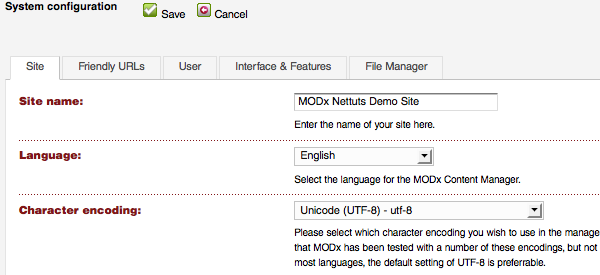

In order to focus on the actual MODx development, we will be using the HTML from the Prototyping With The Grid 960 CSS Framework tutorial as our base HTML template. Any HTML file can become a MODx template with minimal effort. And incorporating a CSS framework to MODx is no problem. The basic concept is: if it works outside of MODx then it will work inside MODx. I made a few minor modifications to the HTML for this tutorial, as well as built a simple “content” page based on the home. These are the layout templates that we will be starting with:

Here is a roadmap of the key topics we will be covering:

  • The Groundwork: Before we start
  • The Manager: Templates and Documents
  • Placeholders: Dynamic content
  • Snippets: Adding smart navigation
  • Chunks: Reusable code
  • Template Variables: Custom fields on steroids
  • Hierarchy: Parents and Children
  • Ditto: Repurposing Content
  • Conclusion

The Groundwork: Before we start

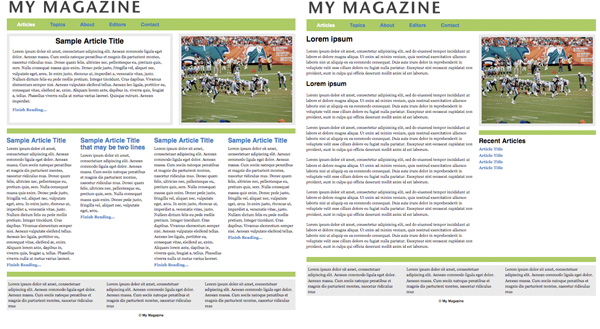

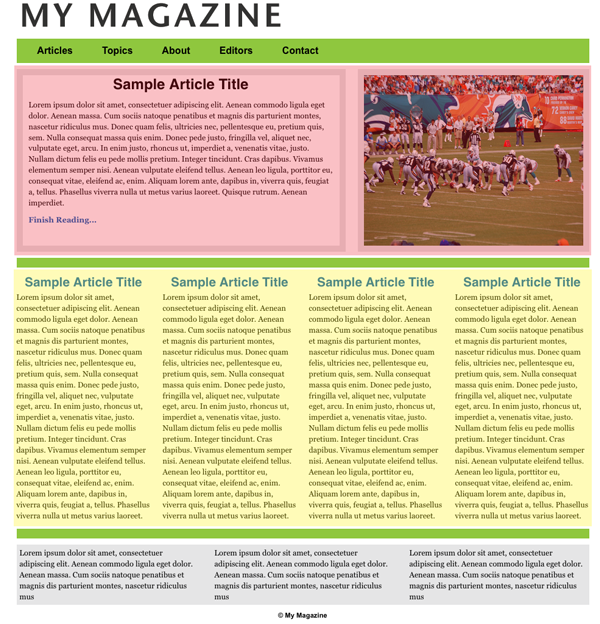

The first step is to prepare the HTML files to be used as MODx templates by adjusting the file paths to reflect the final file structure we will be using. MODx provides the /assets/ folder for storing the site files and this is what we will follow. However, you are allowed to place the files anywhere you want. This is one of the features that makes MODx easy to integrate into your existing workflow.

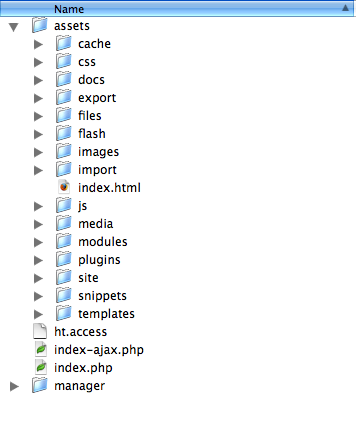

I have uploaded the base images for the template in the existing /images/ folder, and then created a new folder named “css” where I uploaded the css files. At this time we are only concerned with the site structure and not worried about the content just yet. Therefore we only need to adjust the paths for the CSS files and the ‘logo’ image, the remaining content will be included via MODx.

<head>
<meta http-equiv="content-type" content="text/html; charset=utf-8" />

<title>Magazine 960 — Prototype</title>
<link rel="stylesheet" type="text/css" media="all" href="assets/css/reset.css" />

<link rel="stylesheet" type="text/css" media="all" href="assets/css/960.css" />
<link rel="stylesheet" type="text/css" media="all" href="assets/css/style.css" />

</head>
<body>

<div class="container_12">
	<!--Header Div -->
	<div class="grid_12">
		<a href="#"><img src="assets/images/header.png" alt=""/></a>

	</div>

We are not quite finished with the HTML documents. However, for the remainder of the process we can work within the realm of MODx.

The Manager: Templates and Documents

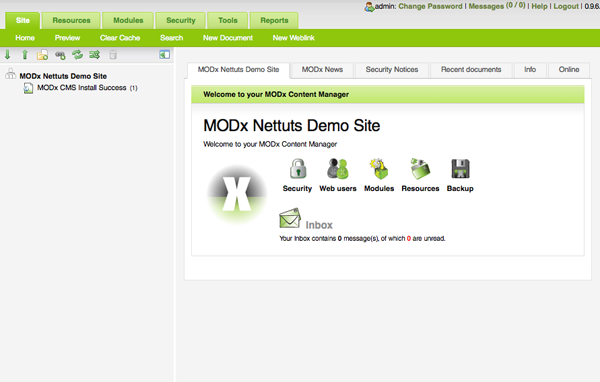

The MODx Manager is the administrative control panel. Login to the MODx Manager.

The Manager is basically comprised of 3 parts:

  1. the Admin Menu located on the top;
  2. the Document Tree is to the left; and the
  3. Action/Edit Area is to the right and will change according to the selected function.

At this point we want to add our HTML files into the MODx environment as Templates. Select Resources > Manage Resource from the Admin Menu to the websites resources.

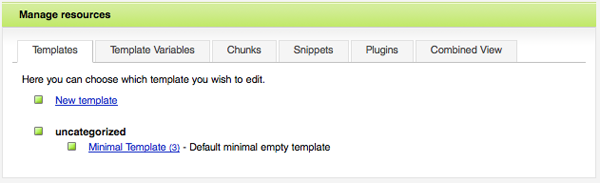

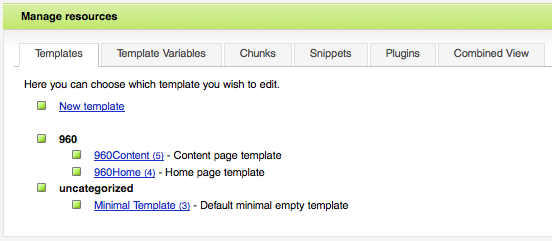

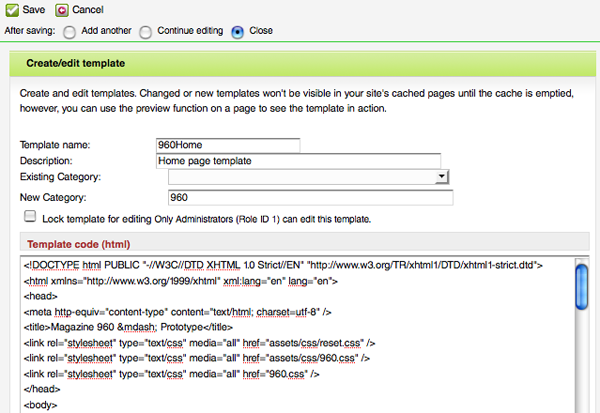

Select the Templates tab. Click on the ‘New template’ link to enter the Create/edit template screen. Set a name and a description for your template, and optionally add the template to a category to help keep your resources organized (we will use 960 as our category). Paste the HTML in to the text field labeled ‘Template code (html)’ and click on “Save”

Repeat the process with the content template. We should now have our 2 new templates as well as the Minimal Template that is packaged with MODx and created during the installation.

Next we will go ahead and create a few MODx documents (web pages) to represent our site’s initial structure. Lets start by editing the existing document that was created during the installation. In the Document Tree (left hand column) right-click (control-click on the mac) on the document name to bring up the Contextual Menu. In the menu select the option ‘Edit Document”.

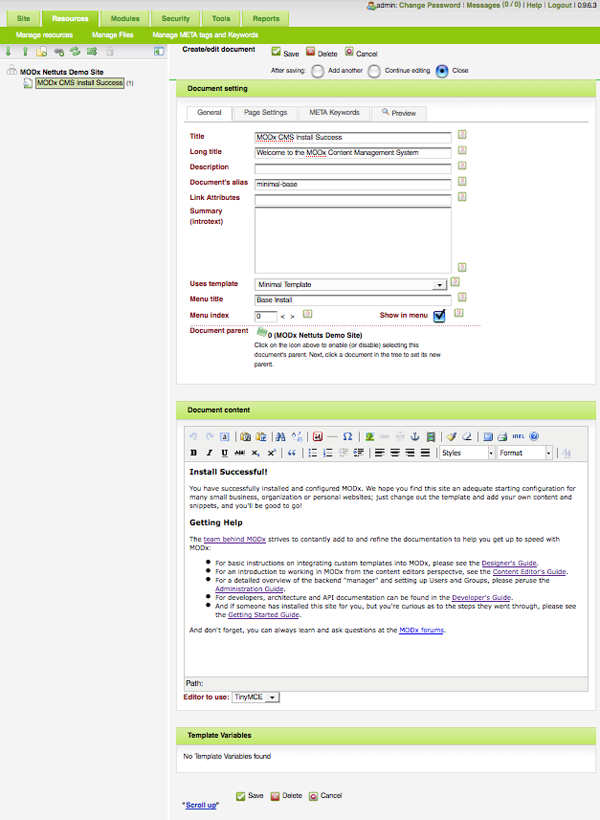

The ‘Create/edit document’ screen is now loaded in the main body of the manager and you are ready to edit the selected document. The document’s data is grouped in sections according to function and content. At the top we have the Document Setting section which houses the pages parameters as well as the status information.

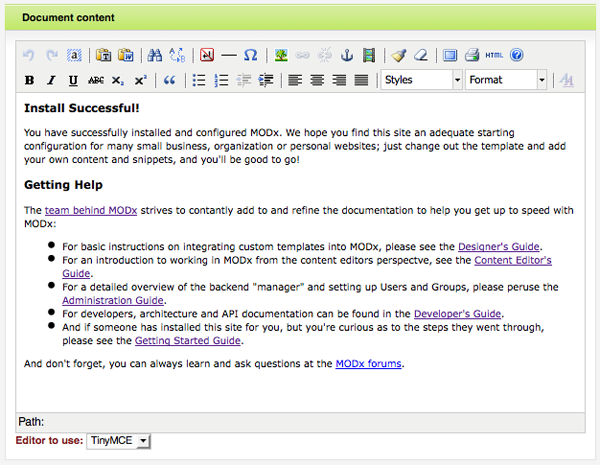

Next we have the Document Content section where the main content field for the document is managed. The content field has the option to include a RTE (Rich Text Editor).

Finally there is the Template Variable section. Template Variables are MODx’s answer to Custom Content fields. And MODx does this very well. We will see them in action a little later.

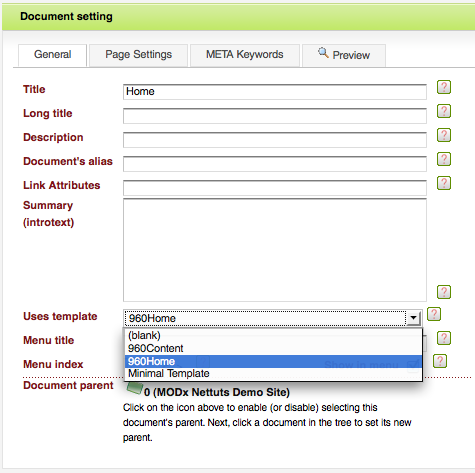

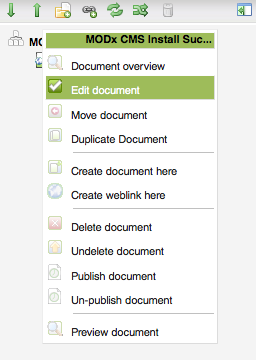

OK, back to business. We can rename the existing document and make this be our Home page. To do this, while in edit mode type Home in the ‘Title’ field, then clear the text that is in the ‘Long Title’ field, and also clear the text that is in the ‘Menu Title’ field (we will not use these fields for this tutorial). Next, select the template that we created for the home page from the ‘Uses Template’ pull down menu (note; when changing templates you will receive a prompt warning you that the page will reload).

Once complete click on save and you will now see that the document in the Document Tree now reads ‘Home’.

Next we will add the remaining top level content pages. Click on the ‘New Document’ icon in the tool bar directly above the Document Tree to create a new blank document at root level.

In the ‘Title’ field type in ‘Articles’ and select the ‘Content’ template we created earlier from the ‘Uses template’ menu. Since we are working on a new document it defaults to the up-published state (the defaults can be overridden in the site settings). So before we save it we need to set it to published by selecting the Page Settings tab and checking the Published option.

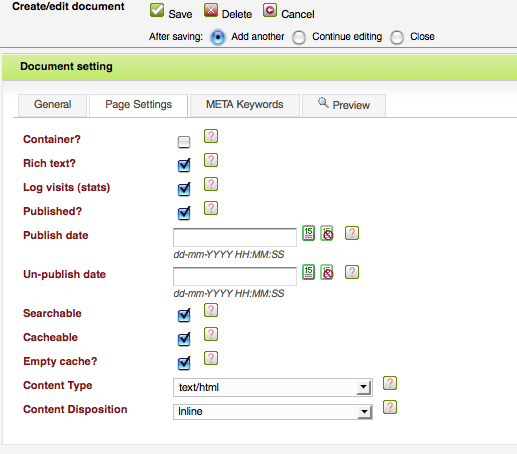

Before saving the document select the ‘Add another’ function (located just bellow the top save button). This will automatically cue up another document to be created after saving the current one. This is a great time saver when adding multiple documents.

Repeat this process for the remaining top level menu items; Articles, Topics, About, Editors, and Contact. When you finish your document tree will look like this (note: the number in parenthesis is the document’s ID number, we will need to know this later):

Up to this point we have been laying the groundwork for our project and have seen very little of what MODx can do (although the easy way to set up a site is impressive). Lets do a quick recap:

  • We have 2 HTML templates;
  • we have uploaded the files to our modx installation;
  • and we have created a number of top level documents or ‘web pages’.

Believe me, it took way longer for you to read what we have done so far than it would take you to do it. A developer familiar with MODx could accomplish what we have done so far in about 10 minutes or less.

Things are about to get very interesting. Now that we have our basic site structure we can start working with MODx.

Placeholders: Dynamic Content

Now we will return to our templates and add placeholders for the dynamic content. As we previously saw while we created the new documents, MODx provides a number of fields that we can use as the basis for our content management. In MODx the group of data fields that are associated with every document are referred to as the ‘Document Object’ and the individual fields are the ‘Document Variables’. Every field can be included dynamically to the MODx rendered output by means of placeholders. Placeholders for the Document Variables are identified by the following syntax: [*variable-Name*]. So if the want to add the Content field we would use [*content*] placeholder. MODx also provides placeholders for global Site Variables for data like the ‘site url’ or the ‘site name’, Site Variables are identified with the following syntax: [(var-Name)]. For example we can take the <title> and have it reflect the active page title and the site name by adding the corresponding placeholders. Here is our original title tag:

<title>Magazine 960 — Prototype</title>

And here it is after we add the placeholders:

<title>[*pagetitle*] — [(site_name)]</title>

And it will render as:

Our next step is to work with the ‘content’ template by adding the placeholders for the dynamic content. You can either open the template directly in the Manager or use an external code editor of your choice and paste code back into MODx when you are finished (note: you can also keep your template files as external ‘include’ files if you want, but we will not cover that in this tutorial).

In our template we will have dynamic content in the body of the site, the footer, and in the head section. Here is what the head section should look like after adding the placeholders:

<head>
	<meta http-equiv="content-type" content="text/html; charset=[(modx_charset)]" />

	<title>[*pagetitle*] — [(site_name)]</title>
	<base href="[(site_url)]" />
	<link rel="stylesheet" type="text/css" media="all" href="assets/css/reset.css" />

	<link rel="stylesheet" type="text/css" media="all" href="assets/css/960.css" />
	<link rel="stylesheet" type="text/css" media="all" href="assets/css/style.css" />

</head>

Notice that I added the <base> tag with the [(site_url)] placeholder and also added the [(modx_charset)] placeholder to define the charset. MODx requires the base tag for relative urls. Note: the site_name and modx_charset are defined in the site configuration panel in the Manager.

For the general content section we will add the content and pagetitle placeholders:


<!--Content Section-->
<div id="content" class="grid_7">
	<div>
	<h1>[*pagetitle*]</h1>
	[*content*]
	</div>

</div>

And finally we will simply add the Site name to the footer:

<div id="legal">
	<p>© [(site_name)]</p>
</div>

Save the edited template file. If you preview one of the content pages of our site you will notice that the page <title> will reflect the title of page you are viewing.

Snippets: Adding smart navigation

Now we will be introduced to MODx snippets by using the Wayfinder snippet to include a working ‘smart’ navigation to our site. By smart I mean: the navigation will know when we add a new document and it should be aware of the current location within the site and apply the proper styles as well as manage the behavior when handling children documents. In MODx the most common method for creating navigation is with the ‘Wayfinder’ snippet. A Snippet in MODx is basically a PHP script that will be executed when the document is parsed. Adding a snippet to your document is virtually the same as embedding a PHP function into your web page. Snippets are written in standard PHP code so any coding enthusiast can easily create their own snippets. MODx also features a powerful API that is available within snippet code which makes interacting with the content database and other functions effortless.

Wayfinder will output the document structure and hierarchy according to the site structure in the Document Tree. By default Wayfinder displays the output as an unordered list with each document displayed as a list item and subsequent children as embedded <ul> lists. Sound familiar, this is the standard output for most modern CSS styled menus. However, Wayfinder allows you to personalize each part of the output by means of template chunks. In other words you can have almost any output you need by applying custom templates for Wayfinder to use. Also if you have multiple menus on the same page, each one can have it’s own output templates.

Snippets are identified by the following syntax: [[Snippet-Name]] and can include additional parameters for processing: [[Snippet-Name? &param1=`value` &param2=`value`]]. MODx treats each parameter as an input variable and makes them available for use within the Snippet seamlessly. Snippets are not part of MODx, they are add-ons that function within MODx. Snippets are authored and maintained by the MODx community.

In our original HTML template the navigation is structured like this:

	<!-- Navbar Div -->
	<div class="grid_12" id="navbar">
 		<ul>

			<li class="active"><a href="#" title="">Articles</a></li>
			<li><a href="#" title="">Topics</a></li>

			<li><a href="#" title="">About</a></li>
			<li><a href="#" title="">Editors</a></li>

			<li><a href="#" title="">Contact</a></li>
		</ul>
	</div>
	<div class="clear"> </div>

	<!-- End Navbar Div-->

This is easy for Wayfinder and will not require a custom output template.

To add the dynamically generated menu to our template, replace the mock navigation above with the following Wayfinder call:

[[Wayfinder? &startId=`0` &level=`1`]]

The startId=`0` parameter indicates where the menu starts, and by setting it to 0 we are telling Wayfinder to get the top level menu. &level=`1` is telling Wayfinder to only go 1 level deep (no sub menus). After adding the Snippet call the template should look like this:

	<!-- Navbar Div -->
	<div class="grid_12" id="navbar">
		[[Wayfinder? &startId=`0` &level=`1`]]
	</div>

	<div class="clear"> </div>
	<!-- End Navbar Div-->

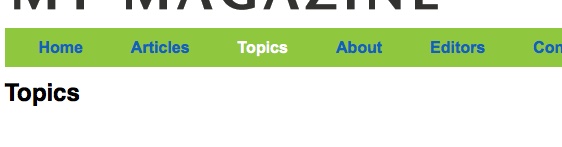

Preview a content document and you will see that the navigation is now active and the current page is styled in an ‘active’ state with class=’active’.

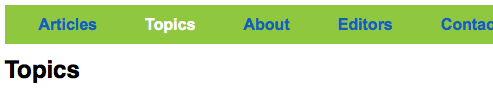

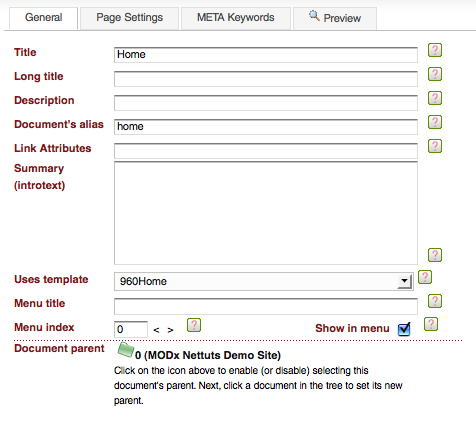

You will also notice that the ‘Home’ page is also in the menu but we don’t want it to be there. No problem. Edit the Home page (right-click on the home document in the document tree and select ‘Edit Document’). In the ‘General’ tab in the Document Settings section you will see that the ‘Show in menu’ option is selected. Simply uncheck the box and save the document.

If you return to the site the Home link will no longer be visible.

Now our main navigation is complete in the ‘content’ template. Wait a minute! What about the home page? Do we need to repeat everything again for each template? The answer is: NO!

Chunks: Reusable code

A chunk in MODx is a bit of reusable HTML code (no PHP). Chunks can be used to store markup that is common in several documents. This is very handy when managing resources like templates that are made up of various common markup elements such as the header and footer of the site. In our example, where we only have 2 templates, this is not crucial. However, imagine having several templates and having to update a common element on each one. By using a chunk you will only need to edit it once and it will be rendered everywhere the chunk is called (and will be cached only once keeping the file size down). A chunk is identified by the following syntax: {{chunk-Name}}

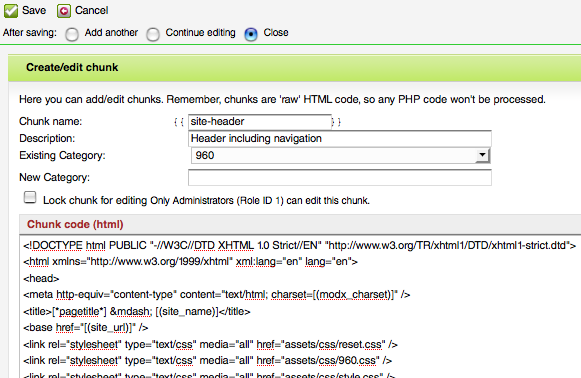

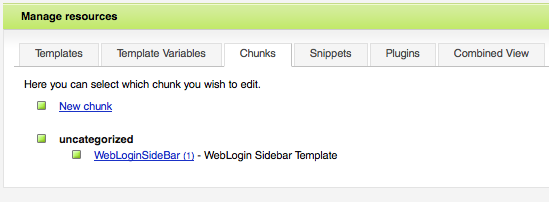

Creating a chunk is much like creating a template. While in the Manager go to Resources > Manage Resources and select the Chunks tab.

Give the chunk a unique name and a description and place the HTML in the ‘Chunk Code’ field. We will be creating 2 chunks, one for the header and a second for the footer. In the header chunk we will include everything above the content area and name it “site-header”.

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">

<html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en" lang="en">
<head>
<meta http-equiv="content-type" content="text/html; charset=[(modx_charset)]" />

<title>[*pagetitle*] — [(site_name)]</title>
<base href="[(site_url)]" />
<link rel="stylesheet" type="text/css" media="all" href="assets/css/reset.css" />

<link rel="stylesheet" type="text/css" media="all" href="assets/css/960.css" />
<link rel="stylesheet" type="text/css" media="all" href="assets/css/style.css" />

</head>
<body>

<div class="container_12">
	<!--Header Div -->
	<div class="grid_12">
		<a href="#"><img src="assets/images/header.png" alt=""/></a>

	</div>
	<div class="clear"> </div>
	<!-- END HeaderDiv -->

	<!-- Navbar Div -->
	<div class="grid_12" id="navbar">

		[[Wayfinder? &startId=`0` &level=`1`]]
	</div>
	<div class="clear"> </div>
	<!-- End Navbar Div-->

And for the footer chunk we will repeat the process and copy the markup beginning at the ‘footer’ div as our chunk code and we will name it ‘site-footer’.

	<!-- Footer -->
	<div class="grid_12" id="footer">
		<div class="grid_4 alpha">
			<p>Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor. Aenean massa. Cum sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus</p>

		</div>

		<div class="grid_4">
			<p>Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor. Aenean massa. Cum sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus</p>
		</div>

		<div class="grid_4 omega">

			<p>Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor. Aenean massa. Cum sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus</p>
		</div>
	</div>

	<div class="clear"> </div>
	<!--End Stories Area-->

</div>
<div id="legal">
	<p>© [(site_name)]</p>
</div>
</body>
</html>

Now we can replace the markup for the header and footer with the corresponding chunks in the content template. When you are finished the template should look something like this:

{{site-header}}

	<!--Content Section-->
	<div id="content" class="grid_7">

		<div>
		<h1>[*pagetitle*]</h1>
		[*content*]
		</div>
	</div>

	<div class="grid_5">

		<div>
			<img class="topSection" src="assets/images/poster.jpg" alt="" id="poster"/>
		</div>

		<div class="spacer"></div>
		<div class="listing">
		<h2>Recent Articles</h2>
		<p><strong><a href="#" title="">Article Title</a></strong></p>

		<p><strong><a href="#" title="">Article Title</a></strong></p>
		<p><strong><a href="#" title="">Article Title</a></strong></p>

		<p><strong><a href="#" title="">Article Title</a></strong></p>
		</div>
	</div>


	<div class="clear"> </div>
	<!--End TopSection-->



	<!--Spacer-->
	<div class="grid_12 spacer">
	</div>

	<div class="clear"> </div>
	<!--End Spacer-->

{{site-footer}}

Now we can apply the same chunks to the ‘Home’ template and carry over all of the work that we did with the content template. This will help us when updating the templates. Once complete you should now preview the site and be able to navigate between pages and the common elements should remain consistent throughout the site.

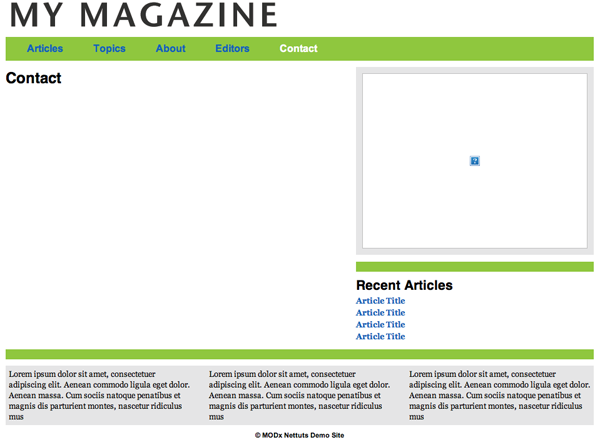

While previewing the site you may have noticed something missing. The design states that there will be an image on each page. However, there isn’t a document variable for adding an image. Sure I can add images using the WYSIWYG editor if the image was part of the content. However, our image is in an isolated column away from the content field. You say to yourself: “If we only had a way to add custom content fields”.

Template Variables: Custom fields on steroids

The concept of custom content fields is by no means new, and many CMS have implemented some sort of custom fields. The MODx solution are named Template Variables (or TV). These are custom fields that can be formated to specific output types, or can output programatically generated list, or can generate a data grid based on the result of a query… Basically there is a TV for whatever your needs may be. MODx makes sure that the custom data is at your fingertips and is seamlessly integrated with the standard document content.

The custom fields are attached to the document by association with the template the document is using (hence the name Template Variable). This allows you can create groups of TVs for specific sections of your site based on the templates that the pages are using. You can have one set of TVs for one section, and another set for another section, and still share common TVs when needed. Template Variables use the same syntax as Document Variables: [*Template-Variable-Name*]

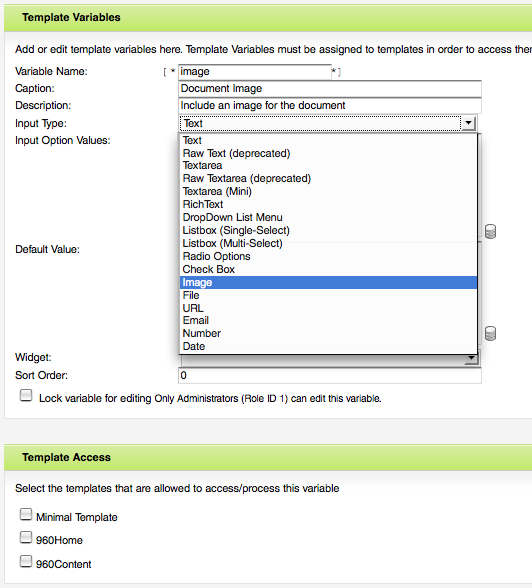

We will be creating an Image type TV. An Image TV will generate a custom input field with access to the Resource Manager (MODx currently uses the MCPuk file manager) which includes the image browser as well as the ability to upload new images.

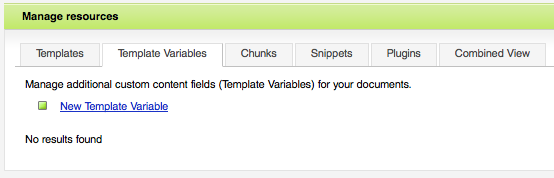

To create a new Template Variable, in the Manager go to Resources > Manage Resources and select the ‘Template Variable’ tab and click on the ‘New Template Variable’ link. Fill in the Variable Name field with a unique name. This name will be used to identify the TV as well as the placeholder. We will name our TV ‘image’ and will reference it with the [*image*] placeholder. The Caption field is used to give a friendly title that will be used as a label for the TV together with the Description field. For the Input Type we want to select the option Image from the pull down menu. Optionally we can use an output Widget to format the results when rendered in the front end. However, in our case we will not be using an output widget.

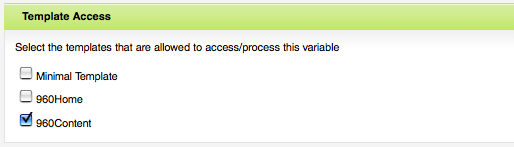

The final step is to assign the content variable to the templates we want to use it in by checking the box next to the template’s name in the Template access section. For our project, only the content pages will have an image so we do not need to include the ‘Home’ template.

Optionally we can also limit the TV to specific user groups. This is very handy in using custom content that only administrators should be able to edit.

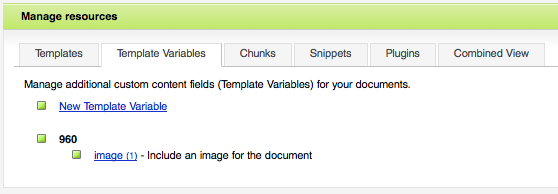

Save the TV and you should now see it listed with the sites resources.

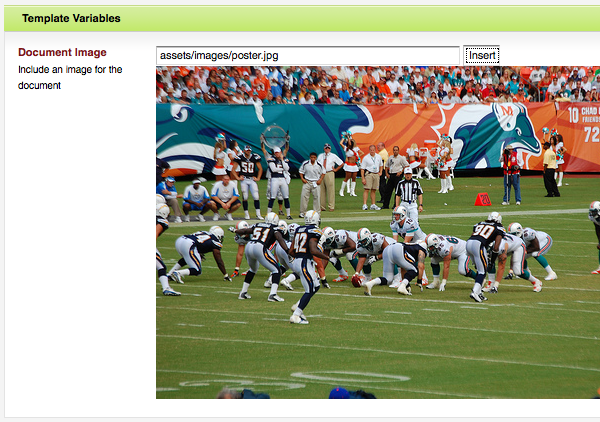

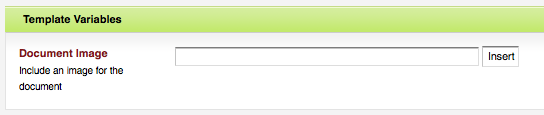

Now if you edit a content document you will now have access to the Image TV we just created. Click on the ‘insert’ button that is attached to the field to upload an image or to select an image from the Resource Browser.

Once the image is selected in the Resource Browser it’s path will be available in the input field and the image will be displayed directly in the Manager bellow the image field. Although MODx does not natively provide image manipulation features, there are several image resizing and thumbnail generating add-ons available that can work seamlessly with image TVs.

Next simply apply the image TV to the ‘content’ template by replacing the static image path with the placeholder for the Template Variable:

<div>
<img class="topSection" src="[*image*]" alt="" id="poster"/>

</div>

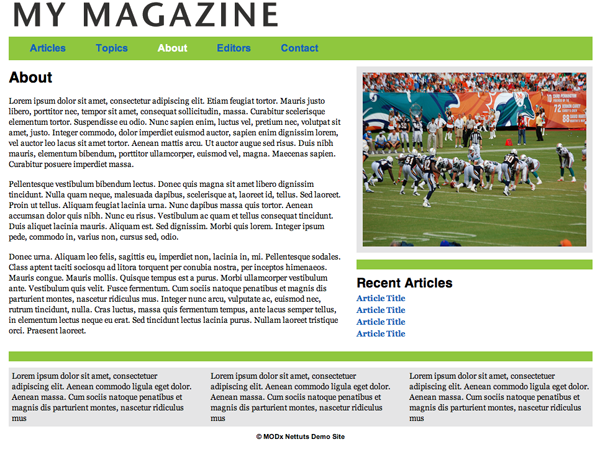

We are now finished with the overall format of the site. You can now add some text and images to the content pages if you want. Enter Edit mode by right-clicking on the document you want to edit in the Document Tree and selecting Edit Document. After adding some content and images the site is beginning to take shape. And if you look at the site you will notice it looks much like the original prototype (as it should).

Hierarchy: Parents and Children

To kick off this final stretch we need at least 5 articles to work with. We have seen how to create documents, nothing new here. However this time we will place the new documents as children of the existing ‘Articles’ document as if it was a folder. This is when the Document Tree becomes very useful, since it will give you a visual representation of the document’s parent/child hierarchy.

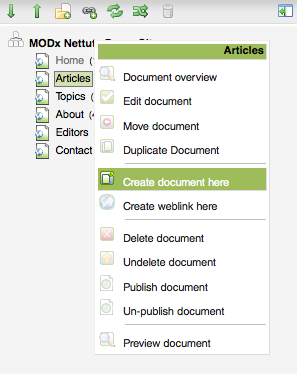

Login to the Manager and in the Document Tree, right-click (control-click on mac) on the document titled ‘Articles’ to bring up the contextual menu. Select ‘Create Document Here’ from the menu options to open the Create/Edit Document screen.

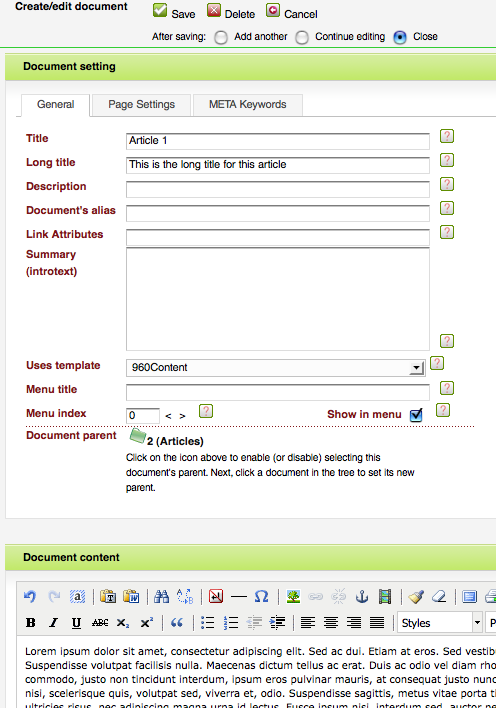

Make sure that the document is set to use the ‘content’ template and proceed to fill in the content fields, including the image TV, and save the document.

If you now look at the Document Tree now you will notice a + next to the Articles document. This means that this document has children. Click on the + to expand and see the children documents.

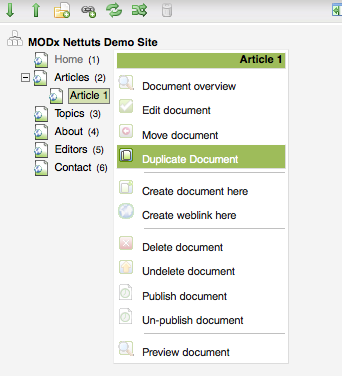

Now create 4 more children by either repeating the process we just did, or by duplicating the existing document (tip: duplicating the document will save time since the content will also be duplicated). To duplicate a document select the document and choose ‘Duplicate Document’ from the contextual menu. The new document will be created at the same level as the original.

Once finished Articles document should have 5 children documents complete with content. If you preview an article document in the front-end you will notice that the main menu will reflect that these documents are children of the Articles menu item.

Ditto: Repurposing Content

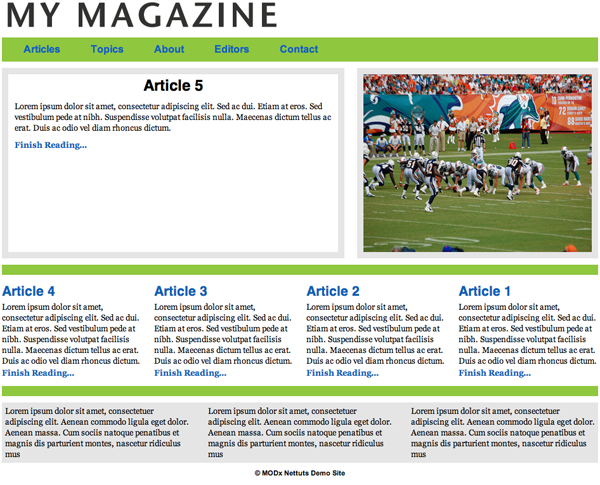

Our final task in this tutorial will be to build the Home page. As with most magazine sites, the content that is displayed on the home page is extracted from pages within the site and not from the home page itself. Our design calls for 1 headline story and 4 secondary stories, and we want the headline to be the article that was created most recently (in a real-life scenario we would most likely use the published date). Also, we want this to be automated, so that the editor only needs to add the article and does not need to be concerned with the home page.

To accomplish this with MODx we will be using a snippet named Ditto (developed by Mark Kaplan). This is one of the most useful tools that you will see in any CMS environment. Ditto does so much, so well, that it is difficult to summarize what it can do. Basically it provides you a way to easily query the site content, then fine tune the results with multiple filters, while still giving the developer total control over the output structure of the results.

By looking at the home template we can identify that there are 2 different output displays we need to be work with. There is the top section with the headline article that also includes the image for the article. And there is a secondary section that has a summary of 4 recent articles but with no image:

As with most solutions in MODx, there are various approaches to accomplish our task. We could treat the headline and the secondary articles independently with individual Ditto calls, that would work fine. However, we will do it with one simple Ditto call and subsequently only one database query. Remember that Ditto is a snippet so it follows the snippet syntax which means we can define parameters in the snippet call to configure the snippet’s action.

Edit the home template (good idea to make a backup first since we will need to reference the original markup later) and replace the entire content section with this Ditto call:

[[Ditto? &parents=`2` &display=`5` &orderBy=`createdon DESC`]]

The Home template will now look like this:

{{site-header}}

	[[Ditto? &parents=`2` &display=`5` &orderBy=`createdon DESC`]]

	<div class="clear"> </div>
	<!--End Stories Area-->


	<!--Spacer-->
	<div class="grid_12 spacer">
	</div>
	<div class="clear"> </div>
	<!--End Spacer-->


{{site-footer}}

In the call we defined the following parameters:

  • &parents=`2` tells Ditto to only return documents that are children of document ID 2;
  • &display=`5` tells Ditto to only display 5 articles
  • &orderBy=`createdon DESC` and this tells Ditto to sort the results by the ‘createdon’ field (which is the time-stamp for when the document was created) document variable in DESCending order (much like a SQL query).

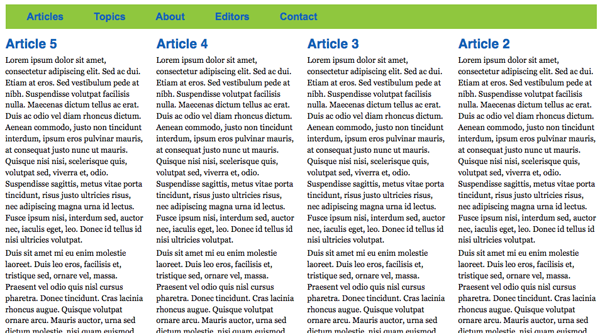

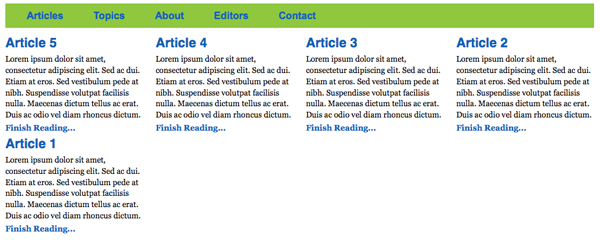

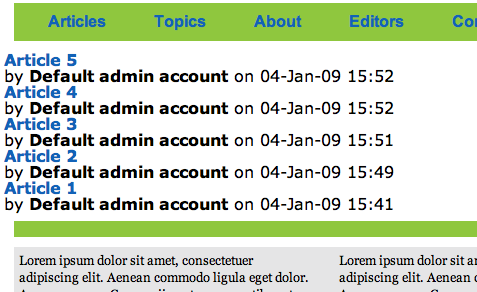

Preview the home page and you will see the results of our query as a list of articles with some additional default information. You can experiment by changing the parameter values and see how the results will change accordingly.

We are getting the right results but the formating and content are not quite there. As we have mentioned previously when we talked about Wayfinder, Ditto also allows us to format the output to accommodate our needs by means of template chunks. We will now apply formating to our Ditto results.

As the name implies, Template Chunks are chunks, so we start by going to the Chunks tab in the Manage Resources section. Create a new chunk and give it a descriptive title like “home-articles”. This will be the template chunk (or tpl) for the secondary articles.

We will be using the markup from the original home page template as the starting point for our tpl. Then we will replace the static text with dynamic content by means of placeholders. This is similar to adding placeholders to the site templates, however the placeholders are being returned from the Ditto query rather than from the active document.

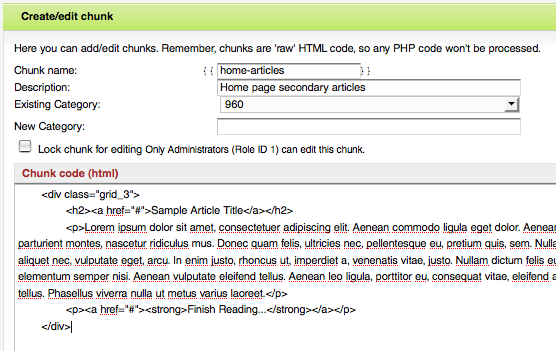

Here is the original markup. Paste this as the content of our new chunk:

	<div class="grid_3">

		<h2><a href="#">Sample Article Title</a></h2>
		<p>Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor. Aenean massa. Cum sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus. Donec quam felis, ultricies nec, pellentesque eu, pretium quis, sem. Nulla consequat massa quis enim. Donec pede justo, fringilla vel, aliquet nec, vulputate eget, arcu. In enim justo, rhoncus ut, imperdiet a, venenatis vitae, justo. Nullam dictum felis eu pede mollis pretium. Integer tincidunt. Cras dapibus. Vivamus elementum semper nisi. Aenean vulputate eleifend tellus. Aenean leo ligula, porttitor eu, consequat vitae, eleifend ac, enim. Aliquam lorem ante, dapibus in, viverra quis, feugiat a, tellus. Phasellus viverra nulla ut metus varius laoreet.</p>
		<p><a href="#"><strong>Finish Reading...</strong></a></p>

	</div>

Replace the static content with dynamic placeholders. Note that when used within a template chunk we need to use the following syntax for placeholders: [+varName+].

After adding the placeholders the chunk above should now look like:

	<div class="grid_3">

		<h2><a href="[~[+id+]~]">[+pagetitle+]</a></h2>
		<p>[+content+]</p>
		<p><a href="[~[+id+]~]"><strong>Finish Reading...</strong></a></p>

	</div>

Edit the Ditto call to include the &tpl=`home-articles` parameter in order to define the template chunk to be used for output display.

[[Ditto? &parents=`2` &display=`5` &orderBy=`createdon DESC` &tpl=`home-articles`]]

Preview the home page and it will show the articles as columns in descending order.

Notice that we are getting the entire article content, but all we want is the first part of the article truncated after a determined number of characters as a summary. No problem. We can simply add &extenders=`summary` to the Ditto call and use the [+summary+] placeholder rather than the [+content+] placeholder in the tpl chunk. An extender will extend the Ditto function for a specific purpose, like a plugin. In this case it adds the Summary function. The tpl chunk should now look like this:

	<div class="grid_3">
		<h2><a href="[~[+id+]~]">[+pagetitle+]</a></h2>

		<p>[+summary+]</p>
		<p><a href="[~[+id+]~]"><strong>Finish Reading...</strong></a></p>
	</div>

Our Ditto call looks like this so far:

[[Ditto? &parents=`2` &display=`5` &orderBy=`createdon DESC` &tpl=`home-articles` &extenders=`summary`]]

And the home page should now look like this:

The final step will be to style the most recent article and style it as the headline. Ditto provides us with a method for this by means of the tplFirst parameter which is used to give the first item returned a personalized display.

Create a new chunk and name it ‘home-headline’ and paste in the original markup for the headline section:

	<!--Top Section-->
	<div class="grid_7 topSection">

		<div><h1>Sample Article Title</h1>
		<p>Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor. Aenean massa. Cum sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus. Donec quam felis, ultricies nec, pellentesque eu, pretium quis, sem. Nulla consequat massa quis enim. Donec pede justo, fringilla vel, aliquet nec, vulputate eget, arcu. In enim justo, rhoncus ut, imperdiet a, venenatis vitae, justo. Nullam dictum felis eu pede mollis pretium. Integer tincidunt. Cras dapibus. Vivamus elementum semper nisi. Aenean vulputate eleifend tellus. Aenean leo ligula, porttitor eu, consequat vitae, eleifend ac, enim. Aliquam lorem ante, dapibus in, viverra quis, feugiat a, tellus. Phasellus viverra nulla ut metus varius laoreet. Quisque rutrum. Aenean imperdiet. </p><p><a href="#"><strong>Finish Reading...</strong></a></p>

		</div>
	</div>

	<div class="grid_5 topSection">
		<div>
			<img src="assets/images/poster.jpg" alt="" id="poster"/>

		</div>
	</div>

	<div class="clear"> </div>
	<!--End TopSection-->

	<!--Spacer-->

	<div class="grid_12 spacer">
	</div>
	<div class="clear"> </div>
	<!--End Spacer-->

Replace the static content with the placeholders, including the placeholder for the ‘image’ Template Variable (custom field) to also bring the article’s image into the headline:

	<!--Top Section-->
	<div class="grid_7 topSection">
		<div><h1>[+pagetitle+]</h1>

		<p>[+summary+]</p>
		<p><a href="[~[+id+]~]"><strong>Finish Reading...</strong></a></p>
		</div>

	</div>

	<div class="grid_5 topSection">
		<div>
			<img src="[+image+]" alt="" id="poster"/>

		</div>
	</div>

	<div class="clear"> </div>
	<!--End TopSection-->

	<!--Spacer-->

	<div class="grid_12 spacer">
	</div>
	<div class="clear"> </div>
	<!--End Spacer-->

Save the chunk and append the Ditto call to include the &tplFirst=`home-headline` parameter which tells Ditto to use the `home-headline` chunk to format the first result returned. The final home page template, including the final Ditto call, will look like this:

{{site-header}}

	[[Ditto? &parents=`2` &display=`5` &orderBy=`createdon DESC` &tpl=`home-articles` &tplFirst=`home-headline` &extenders=`summary`]]
	<div class="clear"> </div>

	<!--End Stories Area-->

	<!--Spacer-->
	<div class="grid_12 spacer">
	</div>
	<div class="clear"> </div>

	<!--End Spacer-->

{{site-footer}}

Preview the home page and you should see something like the image bellow. Click on the ‘Continue Reading’ links and you should be taken to the article page with the full story.

The site is now functioning. With the information we have learned above you should be able to add some finishing touches on your own. Try using Ditto to create the ‘Recent Article’ list on the content pages, or add an Article index on the Articles page.

Conclusion

This tutorial was a bit ambitious. My objective was to illustrate how easy it is to work with MODx. And although I have introduced you to concepts like {{chunks}} [*document-variables*] and [[Snippets]], this only shows a tiny fraction of what MODx is about. I urge you to download and install MODx and give it a try for yourself. The MODx community is the driving force behind it’s success and the community forum is very friendly and is a wealth of information, be sure to check it out.

  • Subscribe to the NETTUTS RSS Feed for more daily web development tuts and articles.



Enjoyed this Post?

Subscribe to our RSS Feed, Follow us on Twitter or simply recommend us to friends and colleagues!

By

Rollover to read this author's bio or click through to see a full list of posts by this author.

Shane Sponagle is a refugee from the 90's music industry who migrated to the exiting world of web development. Currently he is focusing on MODx related development and consulting.

Plus Premium


Note: Want to add some source code? Type <pre><code> before it and </code></pre> after it. Find out more
Newer Comments →
  • http://www.mediaguy.eu Ronald Lokers

    wow… huge post about my favorite CMS :D

    You should really check out the modx forums, much information and example sites in there to see what is possible with modx!

  • http://www.mediaguy.eu Ronald Lokers

    Oh… and I forgot to say; you forgot to mention the upcomming modx revolution, it will be released this year!

    modx revolution is a total rebuild of modx and will work even better then the current modx :)

  • http://www.bhutan-360.com Gelay

    Should have come across this before I stumbled onto WordPress!!!

  • http://www.funnyemails.uni.cc sumit

    helpful indeed

  • Antti

    Yeah, I’m also into WordPress, but perhaps I’ll check this and see if there’s a reason to change to a “real CMS” (even though WordPress can be pretty damn close).

  • http://blog.insicdesigns.com insic

    ive tried this a while ago. in fact my experiment in this CMS is still in my webserver. This quite pleasing app.

  • http://www.graphicrating.com Andy Gongea

    Nice tutorial. Thank you!
    Modx is a powerful tool and maybe I will use it on a future personal project. Thanks once again – this is why Nettuts is so great – super tutorials.

  • http://jhaygamba.com Jhay

    I might try this sometime! Thanks

  • http://www.danharper.me Dan Harper

    Thanks for this article, MODx looks like a great CMS. I’ve seen it before, but never really took much notice – which I blame on their website. It doesn’t really give me enough reasons as to why I should be using it.

    After reading this, though, I’ve noticed I really like the way MODx handles designs, page templates and snippets of code. I’m definitely going to have a play around with it this weekend!

  • http://zidesigns.com Zaigham

    Very nice tutorial Shane!

  • http://www.modxguru.com Shane Sponagle
    Author

    Thanks for the positive feedback.
    There is so much more to say about MODx that did not make it into this tutorial. For example MODx has fantastic SEO features that really work well and are easy to implement. There are also advanced features like Plug-ins that allow you to tie into a series of triggered events making it possible for you to change the standard MODx behavior according to your specific needs. Not to mention Modules that give you the freedom to expand the Manager interface for special functions like managing inventory. It is really an impressive platform to work with.
    I can also tell you that MODx has big plans for the future. You will definitely be hearing more and more about MODx in the future.

  • http://www.kevinquillen.com Kevin Quillen

    So how would you sell this to a client? It looks overly complicated for the end user aka the average joe who just wants to type words into a page.

  • http://www.modxguru.com Shane Sponagle
    Author

    @Kevin Quillen: It seems complicated at first. In the tutorial we are looking at it from a developers POV with full privileges (you can personalize permissions based on roles and simplify the Manager interface by only loading what that user needs). However, as a framework you have the ability to provide a custom extremely simple input page for the ‘average Joe’. There are a few existing content input snippets that make the process very simple if needed. MODx is about choices, there is seldom only one solution.

    In general clients pick it up very quickly and are impressed at how straight forward it is. Actually, from my personal experience, clients are requesting MODx, so it is not hard to ‘sell’ it.

  • aceman3000

    Yeah. MODx is the best. SEO out of the box. Speaking URLs are there. It is one of the best CMS out there. I tried many (Drupal, Joomla and so on) but this one is worth the try. Yet so simple but powerful. You can do everything with it and you don´t even have to hack the core files.

    The backend of the new upcoming version “Revolution” is based on the Ext-js Framework and looks very nice. But it´s still in alpha-state.

    A nice german community lives at http://www.modxcms.de

  • http://www.cassilowe.com Cassi

    Awesome tutorial!

    I’ve used ModX on several projects because it’s so easy to implement and the SEO features are great. But I really haven’t used it to its full potential. Seeing an example of how it all works really helps.

  • Kevin Miller

    Anyone have experience that could compare using MODx and Expression Engine?

  • http://www.osmynog.com.ua Warsteiner

    Actually, one of the best features of MODx as for designers, is really simple way to implement your own templates – no PHP knowledge needed. MODx is easy to understand and easy to use.

  • http://www.mexicadesign.com Beto Arpi

    Cool Man!

    I’ve been waiting for this article for a while! I’m trying this framework and this is great to clear my doubts.

    Thanks a lot!

  • http://blog.brenelz.com Brenelz

    Great CMS Tutorial… these are the kind of tutorials I love as sometimes I can’t quite figure out a CMS and this visual helps me walk through some of those steps!

  • http://www.carlosmosqueda.com Carlos

    That is quite cool. We always hear about big names like WordPress, Drupal, and other CMS frameworks that seem complicated. Or are not complicated but touted as the main ways to go. Granted some of this stuff on the developers side looks a bit complicated at first glance but it does look fairly easy to use. It is good to have other choices when it comes to CMS frameworks. I am going to have to try this one. I used Cushy CMS for a very simple project and that seemed to be fine for basic editing but not full blown CMS authoring.

    How about a tutorial with MODx and integrating a jQuery photo gallery or slide gallery with descriptions. Is there the ability to do that? Having to the client adding images and having the gallery auto populate with those images?
    Thanks

  • http://www.modxguru.com Shane Sponagle
    Author

    @Carlos: Adding a jQuery photo gallery is a breeze. There is an existing Snippet for MODx named MaxiGallery that has built in Lightbox and can easily be changed (by using a custom chunk Tpl to format the output) to use any library, and includes front-end user based management.

    I have made simple galleries with a limited number of images by assigning an image Template Variable (custom field) for each photo and used a plugin to create the thumbnails. There are many options and rolling your own is always an option.

  • John

    I found modx overly complex for the end-user but you can get good results quickly and without writing any php if you’re a designer.

    I’d personally go for Silver stripe http://silverstripe.org/

  • http://jaswindervirdee.com Jaswinder

    one word: excellent! every time i think nettuts is slowing down, you guys guys bring us a n excellent post….more of this stuff please!

  • http://chrischasedesign.com frankeee

    MODX is the best, once I learned it I haven’t even looked at Drupal or Joomla ever again, its extremely esy and flexible and I put all of my clients on it!

  • http://www.pleth.com Greg

    Have about 20 MODx sites right now and many more in development. This is a great community!

    Carlos, here are a couple of my posts on the photo gallery topic (one uses jCarousel).

    http://www.gregorysmart.com/2008/05/15/follow-up-using-jcarousel-with-modx/

    http://www.gregorysmart.com/2008/11/18/documentman-modx-document-management-snippet/

  • milos

    and launch MODX vs WordPress args in 5.. 4.. 3..

  • Johnny Aliano

    Yeah, ModX. Not your average 5 minute install, but then I really don’t need another blog…

    There’s so much hype about this CMS a year ago or so. I was one of those guys who’s actually installed it and then got lost in translation (documentation I should say).

    Pretty pretty cool to see it layed out step by step. I might even give it a second try!

  • Pingback: New MODx Find: GetField Snippet | Greg Smart

  • http://photographdaddy.com MattD

    Textpattern

  • http://www.freshclickmedia.com Shane

    Great tutorial Shane – one of the better posts on NETTUTS. I’d not heard of MODx before this, so it’s always nice to read about new platforms.

    I agree with another poster about their website lacking in a certain sense, but that’s not really the point, I suppose. Having said that, I’d still tend to lean towards Expression Engine for Content Management. Who knows though – perhaps I’ll change my mind once I give MODx a try.

    Also, it’s good that you’re taking an active role in answering people’s questions and comments as they come in.

    Nice work!

  • cbaone

    What a great tutorial! I’ve really enjoyed using ModX since I started using over a year ago. I wish this tutorial existed when I first started. That would have made my initial experience a breeze. Not that it was difficult to work with, but I’m a designer. Which is even greater proof of the flexibility of ModX and it’s simplicity. It can be a powerful tool or a simple solution.

    Of course ModX is not right for everybody…That’s why I despise comparisons with WordPress. Yes, you can build a pretty great blog with ModX, but WordPress is still the king of blogs and probably will be for a long time. WordPress is not a CMS, but can be used very effectively as one. ModX was built as an extensible solution for developers to customize to fit their needs.

    If you haven’t tried it yet, you should. It makes building websites simpler, quicker, and more efficient. The community is very active and extremely helpful – one if ModX’s best kept secrects!

  • james

    I’ll second the person who asked how this compares to Expression Engine. I need to learn a CMS soon and can’t decide what to go with.

  • http://codingpad.maryspad.com mary

    Thanks Shane, great tutorial. I’m totally hooked on Drupal but love to try out other CMSs, and ModX is one I’ve been wanting to explore. I was once introduced to it by a friend but found the process of figuring it out a little too annoying at the time, but I think my approach was wrong. This tutorial definitely makes me motivated to revisit it because I do know it’s a pretty cool CMS framework.

    thanks again!

  • http://www.modxguru.com Shane Sponagle
    Author

    There have been a few good discussions regarding MODx vs. EE on the MODx forums. EE is a very good solution, and now that it is (or will be, I haven’t been following lately) built on CodeIgniter, EE will be much more extendable. On that note, the next version of MODx (currently in aplha) will take things to an entirely new level. MODx and EE have different approaches to managing content and content types. I used EE before going to MODx but found MODx better for me, it just made more sense and I was able to take it farther.

    One key difference is one if Open source and the other is Commercial. However MODx also provides commercial support.

    It is not an easy comparison, they are both excellent. I just clicked better with MODx and the community support was a deal closer. I find that with commercial products the user support is less enthusiastic (even if the documentation may be better).

  • http://www.jnsquared.co.uk Moondawgy

    I have used this for 50 odd client sites – it is really the easiest for clients to use against all others I have EVER come across once you learn template variables and use the ManagerManager plugin.

    By using said ManagerManager plugin, you can rename ANY data entry point that is bespoke to the clients needs. Which means in real terms I spend no longer than 10 mins when handing it over as all the data entry and fields are so intuitive for each client.

    In effect you are giving them a bespoke admin section. And it only takes minutes to set up for each client.

    And believe me been doing this for over 10 years and tried, used and installed them all!

  • http://www.flickr.com/photos/danielgilles/ Tanaka13 – Créations du Net

    great tutorial! i will get a hand on it for future projects! thanks for sharing.

  • james

    Thanks for the reply, Shane. I guess I just have to try both and see what sticks. I’ve been doing static sites for years now and I’d like to dynamically tie pages together without learning PHP (for now).

    Do you think one is better than the other if I prefer to make the xhtml/css from scratch and then choose which elements I can drop data into?

  • http://www.modxguru.com Shane Sponagle
    Author

    @James: One of the popular features of MODx is that any file can be a template with minimal effort. Literally just adapt the paths and upload the files and add placeholders. I also like the way MODx gives you a visual representation of the site structure with the Document Tree. It makes it very easy to understand that this document is a child of that document. Although it is a virtual relationship (simply a parent id tag) it seems almost physical like you would see in the file structure of a static site (clients understand it). And since documents are not bound by content type or purpose, you are free to mix things up and work the way you want to.

    xhtml/css is what MODx eats for breakfast, but you are also free to use, god forbid, tables if you want. There are no restrictions to how you want to work.

  • http://modxcms.com Ryan Thrash

    Thanks for the great article Shane. Love seeing stuff like this about MODx. :)

    For some of the folks who’re hesitant about MODx because the state of the support site, we hear you loud and clear and definitely agree. We’ve been working on a total revamp for a while now and hope to have it done soon. It’s the community members like Shane who make MODx what it is and I think it’s fair to say we have an incredible community. 2009 should be the year we live up to our 2007 award. ;)

  • jen
  • http://davidchu.net/wblog/?page_id=52 Dave

    I’ve built a whole lot of sites with MODx, and I’m usually asked to incorporate an XHTML/CSS template. This is extremely easy with MODx! Put your images and CSS into a MODx folder, and as he said above, tweak a few lines in your XHTML to point to those folders, add some variables to pull in content, and there you are. It may take a slightly nerdier person to get a really fancy auto-generating menu, but the menu snippet is very, very good and extremely flexible.

    To put it a simpler way, say you have XHTML. You just put some variables into that for content and such, save, and you instantly have a template that will work on every site page. Or you can easily make multiple templates and assign the appropriate one to each page.

    I haven’t tried EE, and I’m curious about that now. :)

  • Sam

    Try SilverStripe, its made of hobbits.

    (sorry, New Zealand joke, and a lame one)

  • james

    Shane, thanks again for the reply. This sounds right up my alley and I’ll use your tut to get started. Much appreciated!

    @Dave, thanks for the follow up!

  • Pingback: Daily Links | AndySowards.com :: Professional Web Design, Development, Programming, Hacks, Downloads, Math and being a Web 2.0 Hipster?

  • http://www.reidknorr.com/ Reid

    MODx is pretty sweet! I used it a while back and then moved on to experiment with others. I like all of the ajax it has, I hope with the new release that they will build a nicer backend. The UI right now is kind of weird as far as navigating the backend. It looks great though! :)

  • http://nicolasrosental.com Nic Rosental

    Loved it, thanks for the tut! I haven’t seen this before but I’ve already installed and will be using it for a current project.

    Will you make a part II for other features?

  • http://www.ericthayne.com Eric Thayne

    I’ve been using Modx for a few sites for the past while, and I must say, it is very powerful and easy to use. It took me longer than it should have to really get into it though. Something like this would have been helpful :)

  • Pingback: MODx es un framework de PHP para aplicaciones de sistema de administración de contenidos — Tu Tecnologo

  • http://abdusfauzi.com abdusfauzi

    i must say, this CMS Framework is awesome! Seriously great! You can develop a database driven customize website very fast. LOVE MODx! :D

  • http://bao.nguyenquoc.com Bảo

    Very useful tutorial :) , thanks alot

Newer Comments →
